* Please read this entire guide closely before operating the DF Cure.
This product is classified as Class A. In a domestic environment, it might cause radio interference. In such cases, the user may be obligated to take appropriate measures.
Liability Statement
The information in this manual is subject to change without notice. Shanghai Fusion Tech Co. Ltd. (referred to as "Raise3D" here) is not responsible for errors in this manual, and also not responsible for incidental or secondary losses caused by the supply, performance or use of this manual. Shanghai Fusion Tech Co. Ltd. does not provide any guarantees for this manual, including but not limited to implied guarantees for marketability and suitability for specific purposes. The system owner/material purchaser is responsible for determining whether the Raise3D material is safe, legal, and technically suitable for the intended application and, at the same time, deciding the appropriate disposal (or recycling) method in compliance with local environmental regulations. Unless Raise3D's standard sales conditions are stipulated, Raise3D will not be liable for any losses caused by the use of the products described in this manual. The system owner/material purchaser is responsible for determining whether the materials used meet the requirements of Raise3D. Otherwise Raise3D will not be responsible for any losses caused by using the products described in this manual.
Copyright Statement
This document is protected by copyright and all rights reserved. The use, disclosure and possession of this document are restricted by the software copyright and the agreement established by Raise3D. Nothing in this document may be photocopied, reproduced, or translated into another language, unless prior written permission from Shanghai Fusion Tech Co. Ltd. is obtained.
All drawings and information in this manual are property of Shanghai Fusion Tech Co. Ltd. All unauthorized use and copying are prohibited.
Trademark Property Statement
Raise3D, ideaMaker and RaiseCloud are registered trademarks of Shanghai Fusion Tech Co. Ltd.
WINDOWS is a registered trademark of Microsoft Corporation.
macOS is a registered trademark of Apple Inc.
All other product names and trademarks are the property of their respective owners, and Raise3D is not responsible for the selection, performance or use of these non-Raise3D products. Product specifications are subject to change without notice.
Please read this information carefully to ensure that you use the machine safely.
General Information
You can find general information about this instruction manual here.
§ Read this instruction manual carefully. Only this will ensure you use the machine safely and efficiently.
§ This manual is intended for the installer and the user of the machine.
§ Follow the safety instructions and warnings.
§ Keep the instruction manual and the product information safe for future reference or for the next owner.
§ Check the machine after unpacking it. Do not connect the machine if it has been damaged in transit.
§ If you have any questions, please contact our local service center or distributors.
§ Any failure and losses caused by ignoring the following items mentioned, and cautions mentioned in the operation and installation instruction are not covered by our warranty and any liability.
Intended Use
Read the information on intended use to ensure that you use the machine correctly and safely.
Only use this machine:
§ In accordance with this installation and instruction manual. Make sure to follow the installation and instruction manual for the hardware installation and operation, as detailed in chapter C and chapter E.
§ In a well-ventilated and dry environment;
§ The environmental conditions used are:
Operating Ambient Temperature: 10-35°C, 10-90% RH non-condensing;
Storage Temperature: -25°C to +55°C, 10-90% RH non-condensing.
Restriction on User Group
§ Keep children, pets and vulnerable people away from the machine.
§ This equipment is not suitable for use in locations where children are likely to be present.
§ This machine can be utilized by individuals with limited physical, sensory, or mental capabilities or insufficient experience and knowledge, as long as they are supervised or adequately instructed in its safe usage and understand the associated risks.
Safe Installation
Take note of the safety instructions when installing the machine.
WARNING - Risk of Electric Shock!
§ Improper installation is dangerous.
Connect and operate the machine only in accordance with the specifications on the rating plate.

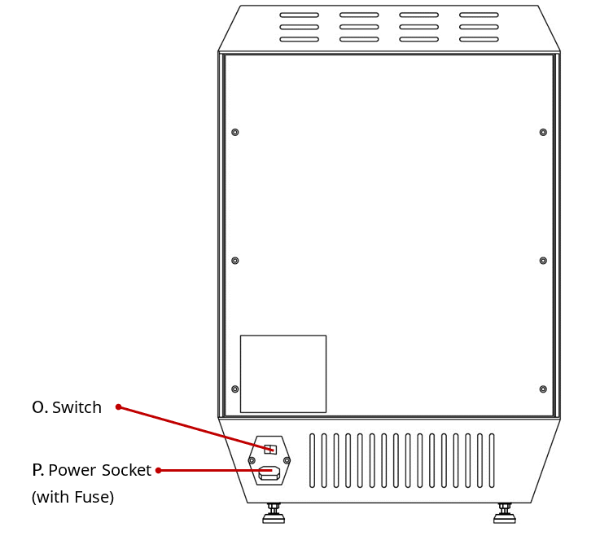

Connect the machine to a power supply with alternating current only via a properly installed socket with earthing.
Please ensure that the socket where the machine will be connected has sufficient power for the correct use of it.
Never equip the machine with an external switching device, e.g., a timer or remote control.
When installing the machine, check that the power cable is not trapped or damaged.
Select the fuse according to the fuse safety identification requirements.
The power plug must be chosen to match the socket. Ensure that the machine is properly grounded.
§ The presence of damaged insulation on the power cord poses a hazard.
Never let the power cord meet hot machine parts or heat sources.
Never let the power cord meet sharp points or edges.
Never kink, crush or modify the power cord.
§ If touching the DF Cure shells reveals an electrostatic inductance, when the DF Cure is energized, this is an indication the DF Cure is not well grounded. Please stop the DF Cure and repair the power connection immediately to ensure a good grounding.
§ Do not connect the power supply with wet hands.
§ If you have any questions, please consult a professional electrician.
WARNING ‒ Risk of Fire!
§ It is dangerous to use an extended power cord and non-approved adapters.
Do not use extension cables or multiple socket strips.
If the power cord is too short, contact Customer Service.
Only use adapters approved by the manufacturer.
WARNING ‒ Risk of Suffocation!
§ Children may put packaging material over their heads or wrap themselves up in it and suffocate.
Keep packaging material away from children.
Do not let children play with packaging material.
CAUTION ‒ Risk of Chemicals!
§ Liquid photosensitive resin: inhalation, ingestion and direct contact may cause respiratory tract infection, digestive tract infection and allergic reaction.
Please cure the liquid photosensitive resin in a well-ventilated environment.
Please wear personal protective equipment (such as gas masks, gloves, and goggles) during the curing of the liquid photosensitive resin.
CAUTION ‒ Risk of Injury!
§ Lifting the machine, due to its high weight, may lead to injury.
Do not lift the machine on your own.
§ The machine may vibrate when in use.
Place the machine on a clean, even, solid surface.
§ If tubes and power cords have been laid incorrectly, this causes a tripping hazard.
Lay tubes and power cords in such a way that there is no risk of tripping.
§ If the machine is moved by holding onto protruding components, such as the machine door, the parts may break off.
Do not move the device by holding onto protruding parts.
CAUTION ‒ Risk of Cutting!
§ Touching sharp edges on the machine may lead to cuts.
Do not touch the sharp edges on the machine.
Wear protective gloves when installing and transporting the machine.
Safe Use
Follow these safety instructions when using the machine.
WARNING - Risk of Electric Shock!
§ If the machine or the power cord is damaged, this is dangerous.
Never operate a damaged machine.
Never pull on the power cord to unplug the machine. Always unplug the machine at the mains.
If the machine or the power cord is damaged, immediately unplug the power cord.
Call Customer Service, please refer to the Chapter of Experiencing Difficulties/Contact Information.
Repairs to the machine should only be carried out by trained specialist staff.
§ An ingress of moisture can cause an electric shock.
Never expose the machine to intense heat or humidity.
Do not use steam cleaners or sprays to clean the machine.
WARNING ‒ Risk of Harm to Health!
§ Children can lock themselves in the machine, thereby putting their lives at risk.
Do not install the machine behind a door as this may obstruct the machine door or prevent it from opening.
With redundant machines, turn off the power and unplug the power cord.
WARNING ‒ Risk of Suffocation!
§ Children may breathe in or swallow small parts, causing them to suffocate.
Keep small parts away from children.
Do not let children play with small parts.
CAUTION ‒ Risk of Injury!
§ The covering plate may break if you stand on or climb onto the machine.
Do not stand on or climb onto the machine.
§ The machine may tip over if you sit on or lean against the open door.
Do not sit on or lean against the machine door.
Do not place any objects on the machine door.
§ Reaching into the chamber while the device is still working may cause hand injuries.
Wait for the device to come to a complete stop and the chamber temperature drops below 60 ºC before reaching inside.
§ Some parts in the DF Cure are sharp and may cause injury.
Do not touch the sharp edges of the parts.
CAUTION ‒ Risk of Burns!
§ When operating or curing at high temperatures, the casing of the machine becomes hot.
Do not touch the front door when the machine is hot.
Please operate with the heat resistant gloves.
Keep children away from the machine while it’s working.

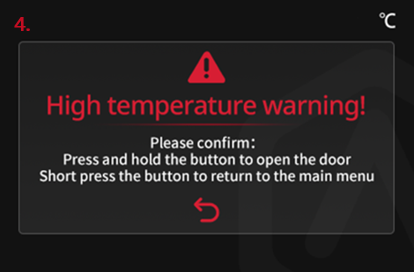

§ The temperature is very high when the curing has just finished.
Keep a safe distance when opening the door after the device stops working and let the chamber temperature drops below 60 ºC to avoid being burned by the hot air flow.
CAUTION ‒ Risk of Chemicals!
§ Safety of liquid photosensitive resin: inhalation, ingestion and direct contact may cause respiratory tract infection, digestive tract infection and allergic reaction.
Do not ingest liquid or solid resin. If accidentally swallowed, immediately call the poison control center or a medical professional.
When handling liquid resin, resin coating surfaces, or solvent, please wear gloves. If the skin comes into contact with liquid resin, it should be rinsed thoroughly with plenty of soap and water.
§ Safety of resin disposal:
The disposal method for liquid resin is to dispose of it in a chemical waste dump or to discard it as household waste after it has been completely solidified. Do not pour liquid or partially solidified resin or solvent into the sewer or dispose of them with household waste. Properly handling resin can prevent harm to the environment and public health.
CAUTION ‒ Risk of UV Radiation!
§ Direct exposure to radiation from UV light sources may cause skin and eye burns.
Do not stare directly at UV radiation light. Wear UV protective goggles when using this machine.
Do not expose yourself directly to radiation range from the UV light for a long time.
Safe Maintenance
Take note of the safety instructions when performing maintenance work on the machine.
WARNING - Risk of Electric Shock!
§ Improper repairs are dangerous.
Repairs to the machine should only be carried out by trained specialist staff.
Only use the manufacturer's original spare parts and original accessories when repairing the machine.
If the power cord of this machine is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
§ An ingress of moisture can cause an electric shock.
Do not use steam cleaners or sprays to clean the machine.
WARNING ‒ Risk of Injury!
§ The use of non-original spare parts and non-original accessories is dangerous.
Only use the manufacturer's original spare parts and original accessories.
CAUTION ‒ Risk of UV Radiation!
§ Direct exposure to radiation from UV light sources may cause skin and eye burns.
Do not stare directly at UV radiation light. Wear UV protective goggles when using this machine.
Do not expose yourself directly to radiation range from the UV light for a long time.
High Temperature Surface: The high temperature surface mark indicates that the surface temperature is very high. Be careful when working around heating components. Please wait for half an hour after turning off the DF Cure before handling the parts to avoid burning your fingers.
UV Radiation: UV radiation mark indicates the existence of ultraviolet light source. Please wear protective equipment to avoid direct exposure to UV radiation.
Moving Parts: Do not put fingers, clothing or hair into gears and other hazardous parts to avoid electric shock, injury, fire, or damage to the device.
High Voltage: The high voltage sign indicates the presence of high voltages. Always stay away from exposed circuitry. It is recommended that all conductors be removed.
Replacement Fuse Identification and Rating Markings: Identification of a suitable replacement fuse shall be marked adjacent to the fuse holder.
Protective Earthing Conductor Terminal: Marked near the protective earthing conductor terminal.
FCC Statement
Please be aware that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
IC Caution
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance.
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.
Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS102 et la conformité à l'expostion de RSS-102 rf, utilisateurs peut obtenir l'information canadienne sur l'exposition et la conformité de rf.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
(1) L’appareil ne doit pas produire de brouillage;
(2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionne.
Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et votre corps.
EU Conformity Statement
| This product and-if applicable-the supplied accessories too are marked with “CE” and comply therefore with the applicable harmonized European standards listed under the RE Directive 2014/53/EU, the EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU, the MD Directive 2006/42/EC. |
| 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: http://www.recyclethis.info. |
| 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: http://www.recyclethis.info. |
UKCA Conformity Statement
| This product is marked with "UKCA" and in conformity with the relevant UK statutory requirement: Radio Equipment Regulations 2017. The full text of the UK declaration of conformity is available at https://www.raise3d.com. |
UK sales partner company name: 3DGBIRE Ltd UK sales partner company address: 3DGBIRE, Unit 44/45 Chorley North Industrial Estate, Drumhead Road, Chorley, Lancashire, PR67BX | |
Electromagnetic Compatibility - EMC
Simplified EU Declaration of Conformity
Raise3D declares that this device is in compliance with the essential requirements and
other relevant provisions of Directive 2014/53/EU. Full text of the EU declaration of
conformity is available at https://www.raise3d.com.
RF Exposure Information
This device has been tested and meets applicable limits for Radio Frequency (RF) exposure.
This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must be co-located or operating in conjunction with any other antenna or transmitter.
CE&UKCA Mark Warning
The device is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency range.
| BE | EE | HR | IT | CY | LV | LT |
BG | IE | LU | HU | MT | NL | AT | |
CZ | EL | PL | PT | RO | SI | SK | |
DK | ES | FI | SE | DE | FR | LI | |
NO | IS | CH | TR | UK(NI) | UK |
|
Installation
To facilitate operation and maintenance, maintain a proper clearance of 30 cm (11.9 in) on the side of the DF Cure, 40 cm (15.8 in) at the front, 20 cm (7.9 in) at the back, and 20 cm (7.9 in) on top during installation. No flammable materials are allowed around the installation location.
Note: During low-temperature transportation, the DF Cure may encounter frost or icing hazards. The DF Cure should be stored at room temperature for 4-6 hours before operating.
Odor
The DF Cure may emit the odor of light-cured resin during operation.
Note: Place the DF Cure in a well-ventilated and dry environment.

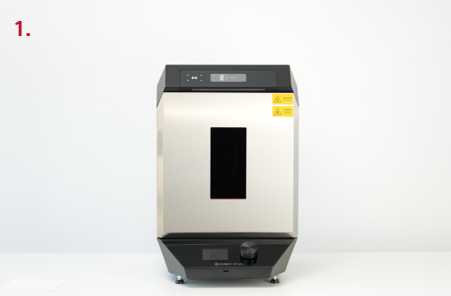

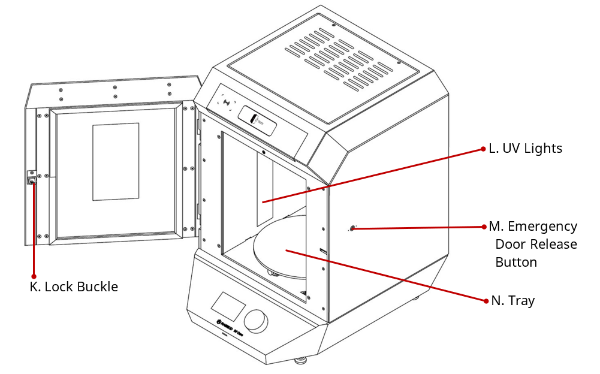

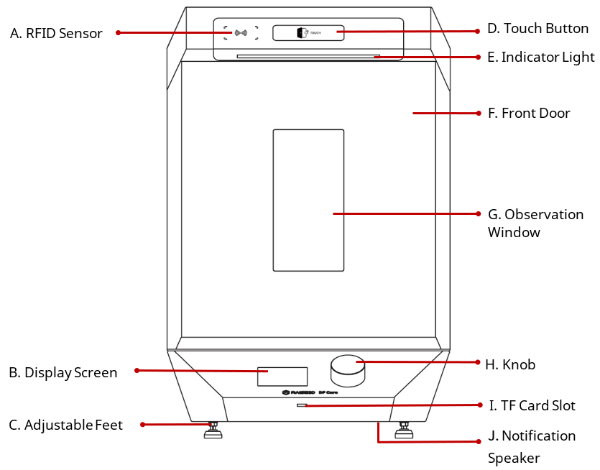

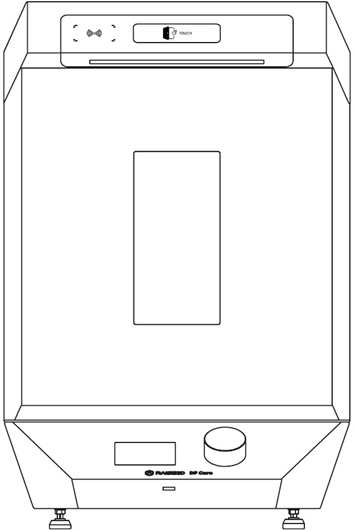

B.1 DF Cure Product Introduction
The Raise3D DF Cure light curing post-processing curing machine (hereinafter referred to as "DF Cure") is a supporting product for the Raise3D DF2 3D printer (hereinafter referred to as "DF2"). The DF Cure performs secondary curing on light-cured resin models, which can maximize the material properties of the 3D printed models and improve the strength and performance of the parts. The DF Cure accurately blends the heat with three wavelengths of 365 nm, 385 nm, and 405 nm for curing models. The DF Cure is designed to cure parts printed on the DF2 and is compatible with 3D printing models from other manufacturers that meet the size requirements
B.2 Technical Specification
ITEM | DF Cure | |
CONSTRUCTION | Maximum Curing Volume | Bottom Diameter: Ø230 mm (9 in), Height: 300 mm (11.8 in) |
DF Cure Size (W×D×H) | 490 mm x 400 mm x 610 mm (19.3 in x 15.7 in x 24 in) | |
ELECTRICAL | Power Supply Input | 100-240 VAC, 50/60 Hz, 500 W |
GENERAL | Operating Ambient Temperature | 10-35°C, 10-90% RH, Non-Condensing |
Storage Temperature | -25°C to +55°C, 10-90% RH, Non-Condensing | |
Operating Noise | ≤55 db | |
Supported Printer | DF2 Printer | |
Tray Diameter | Ø234 mm | |
Maximum Curing Temperature | 120°C | |
UV Power | Maximum UV Power: 180 W | |
Total Power | 500 W | |
LED Wavelength | Mixed 365 nm, 385 nm, and 405 nm | |
DF CURE CONTROL | Screen Resolution | 320 × 480 |
Motion Controller | HR4988 | |
Logic Controller | T5L0 | |
OS | DGUS II | |
Ports | TF Card Slot | |
B.3 Lists of Parts
Front View
A. RFID Sensor
Uses RFID tags and readers for information transmission and identification between the DF2 and the DF Cure.
B. Display Screen
A 3.5-inch non-touch display for user interaction information.
C. Adjustable Feet
Supports the DF Cure and adjusts the level of the DF Cure placement.
D. Touch Button
In standby mode, the front door can be opened by touching this button.
E. Indicator Light
Indicator light status: green light indicates the standby status or the completion of curing; blue light indicates that work is in progress; red light indicates the abnormal status.
F. Front Door
The door of the curing chamber, which can be automatically opened by touching the button and needs to be manually closed.
G. Observation Window
Use to observe the curing condition of the model in the chamber.
H. Knob
Turn the knob to select, set, and control the user interface on the display screen.
I. TF Card Slot
Insert a TF card into the slot to upgrade the DF Cure firmware.
J. Notification Speaker
When a command is received or an operation is completed, the DF Cure emits a sound to alert the user.
Side View
K. Lock Buckle
Push the buckle into the lock hole to lock the front door.
L. UV Lights
UV light irradiation area, which activates during UV curing.
M. Emergency Door Release Button
Press this button to open the door in case of power outage when emergency.
N. Tray
Place the model to be cured on the tray.
Back View
O. Switch
Power switch to turn on or off the DF Cure.
P. Power Socket (with Fuse)
Plug in the power cord to power the DF Cure.
B.4 Accessories List
Item | Name | Purpose | Quantity | Unit |
1 | Heat Resistant Gloves | To prevent skin burns caused by the high temperature during operation | 1 | Pair |
2 | Raise3D DF Cure Tray | To place the models | 1 | Piece |
3 | Power Cord | To provide the DF Cure with electricity | 1 | Piece |
4 | Firmware Upgrade Kit (including: a TF Card, a Micro SD Card Adapter, and a TF Card Extension Adapter) | To upgrade the firmware | 1 | Set |
C.1 Place the DF Cure
After unpacking, please place the DF Cure on a stable, well-ventilated and dry area.
C.2 Connect the Power Cord
As shown in the figure, plug one end of the power cord into the power socket on the back of the DF Cure. Plug the other end of the power cord into the power source.
C.3 Start the DF Cure

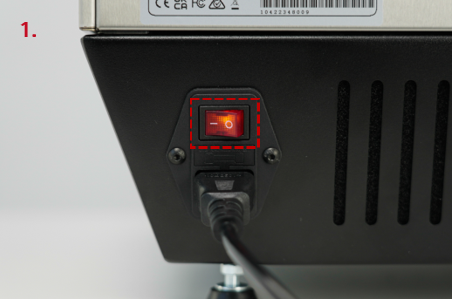

Flip the power switch to power on the DF Cure.
C.4 Install the Tray

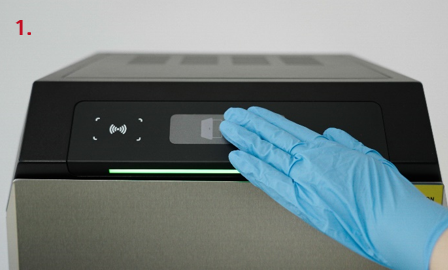

Tap the touch button on the top of the DF Cure to open the front door.

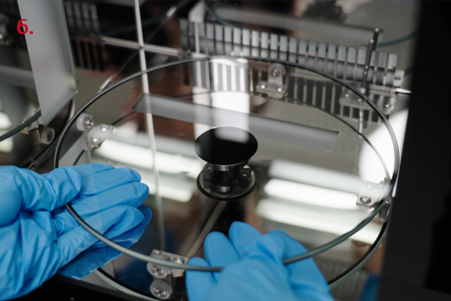

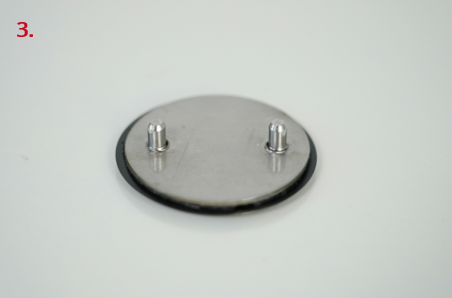

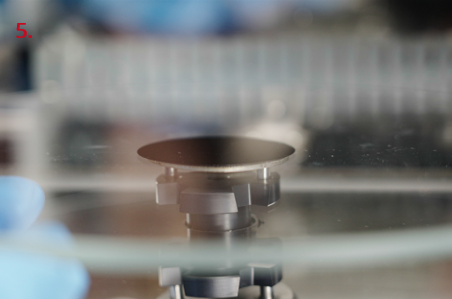

Find the two cylindrical pins at the bottom of the tray (as shown in figure 3) and the two slots on the motor transition block in the chamber (as shown in figure 4).

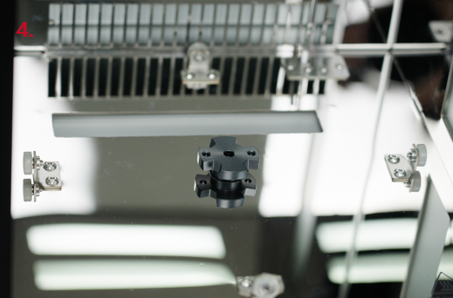

Notice the position of the cylindrical pins at the bottom of the tray and the slots on the motor transition block. Align the cylindrical pins with the slots (as shown in figure 5), and gently place the tray downwards.

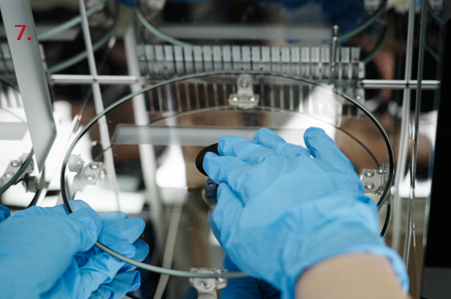

Gently press the tray with your hand to ensure that it is fully seated. Close the front door and the installation of the tray is complete.
This chapter describes the basic operations of the DF Cure display screen interface. The current interface only supports English.
D.1 Display Screen Interface

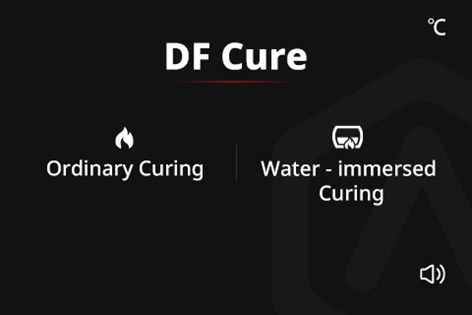

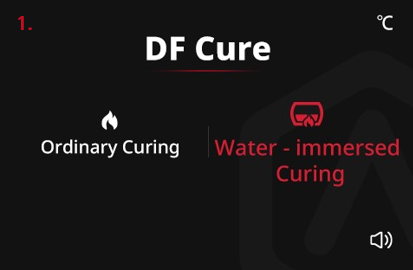

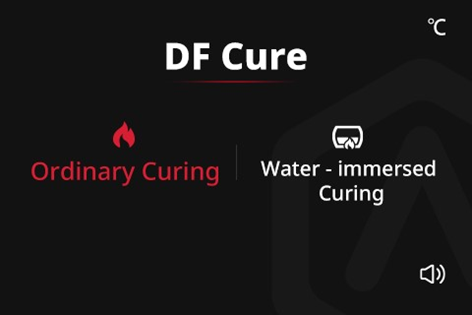

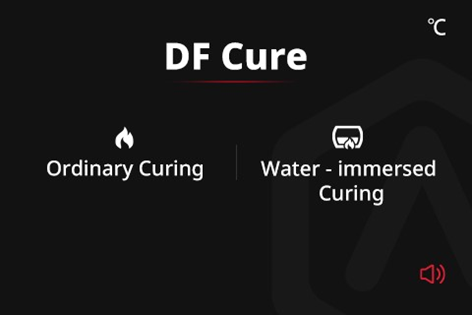

After powering on the DF Cure, the display screen jumps to the home page. The home page has two options: Ordinary Curing and Water-immersed Curing.
Select an option by turning the knob, and the selected option is displayed in red (as shown in the left figure below). Press the knob to enter the corresponding interface.
indicates returning to the home page, and it is displayed in red when selected.
indicates confirming, and it is displayed in green when selected (as shown in the right figure below).
Rotate the knob to highlight the speaker icon in the lower-right corner of the home page, and press the knob to toggle the DF Cure prompt sound. The icon
indicates that the prompt sound is turned on, and the icon
indicates that the prompt sound is turned off.
Note: Only the prompt sound during operation will be affected; the DF Cure startup prompt sound cannot be turned off.
Please refer to Chapter E for specific interface instructions.
D.2 Firmware Upgrade
Raise3D will send you a notification when a firmware update for DF Cure becomes available. After receiving this notification, please use the included Firmware Upgrade Kit to update the firmware for DF Cure.

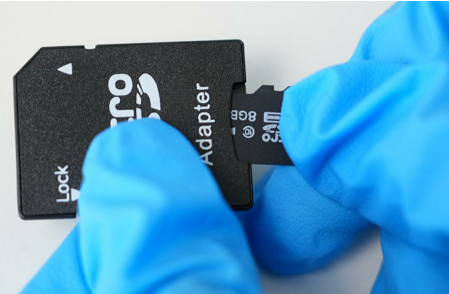

1. As exampled in the red circle in the following figure, ensure that the sliding switch of the Micro SD card adapter is in an unlocked state. Insert the TF card into the Micro SD card adapter, and then insert the Micro SD card adapter into the computer.

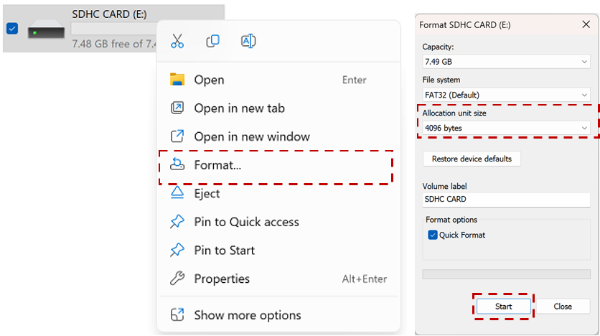

2. Find the folder where the Micro SD card adapter is located, and right-click the mouse to select Format. Select 4096 bytes from the drop-down list of the Allocation Unit Size, click Start, and then follow the prompts on the screen to complete the format.
Notes:
a. If the allocation unit of the TF card is not set to 4096 bytes, the subsequent firmware update will fail.
b. It is recommended to format the TF card three times (continuously) before proceeding to prevent the TF card from not being fully formatted.
3. According to the information in the notification, download the latest DF Cure firmware and place the firmware upgrade files into the root directory of the formatted TF card.
4. Safely eject the TF card, with the new firmware, from the Micro SD card adapter and insert it into the TF card extension adapter. When you hear a "click" sound, it indicates that it is properly mounted.
5. Turn off the DF Cure.

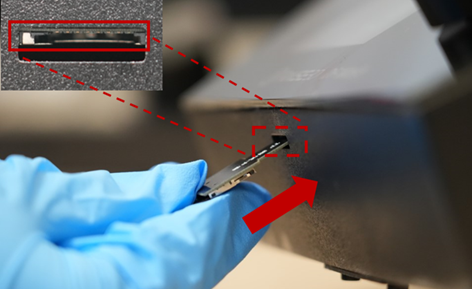

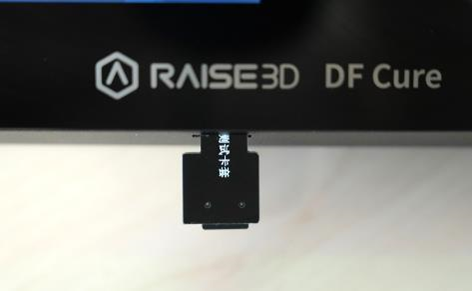

6. Locate the TF card slot, as shown in the red box in the following figure, and mount the TF card extension adapter into the TF card slot along the insertion angle indicated by the red arrow.

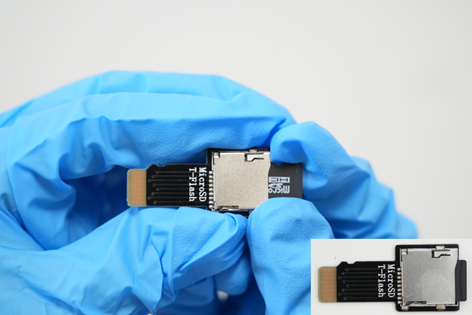

Note: When inserting the TF card extension adapter, it is important to slightly angle it upwards (shown below). The TF card extension adapter cannot be inserted parallel to the flat surface the DF Cure is sitting on.
7. Turn on the power and the system will automatically upgrade the firmware. As shown in the following figure, when ... END appears, the firmware upgrade is complete.

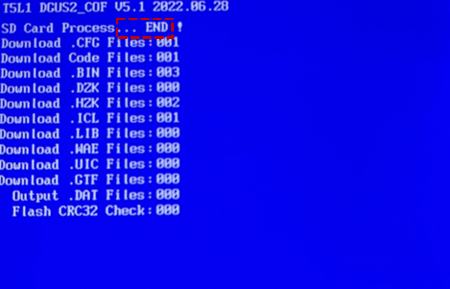

Note: If the screen does not display the interface shown in the following figure, and it shows a blue or black screen, please return to Step 2 (reformatting the TF card) and follow the subsequent steps to upgrade the firmware.
8. Turn off the DF Cure again, pull out the TF card extension adapter and restart the DF Cure. If the firmware version V:x.xx.xxxx displayed on the home page is consistent with the version in the firmware upgrade compressed folder name, the DF Cure firmware update is complete.
E.1 Select a Curing Mode
Ordinary Curing Mode:
Place the cleaned model directly on the tray.

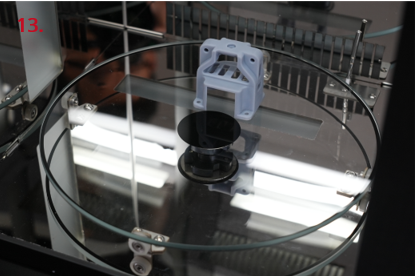

Note: The black area in the center of the tray is the shading area. To avoid interference with the curing effect of the model, please place the model away from the black area in the center.
Water-immersed Curing Mode:

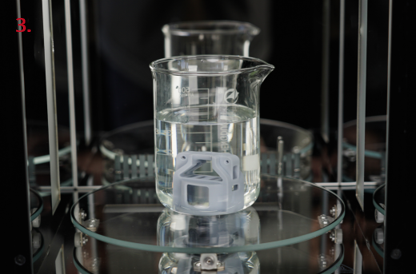

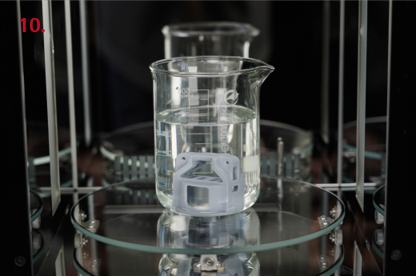

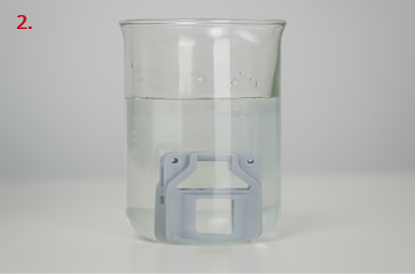

If the model uses resin materials that are prone to react in oxygen, first fully immerse the model in a glass container filled with water to isolate from the air, and then place the container on the tray.
Choose one of the above two modes to place the model before curing. Close the front door.
E.2 Ordinary Curing
RFID Mode Curing:

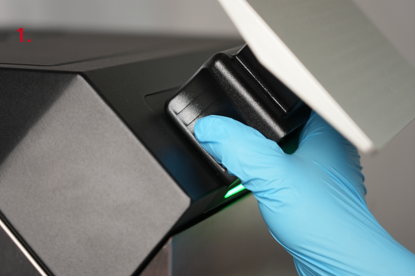

Attach the RFID sensor of the DF2 smart build platform to the RFID sensing area on the top of the DF Cure (as shown in figure 1), and the DF Cure will automatically read and quickly import ordinary curing parameters. When the import is successful, there is a prompt sound effect.
The display screen automatically displays ordinary curing parameters (as shown in figure 2). Press the knob to enter the pre-defined programs and start curing.
If you want to adjust the parameters set in the RFID mode, you can turn the knob to select the parameters to be adjusted and set them. For more information, please refer to the manual setting curing in the following text.

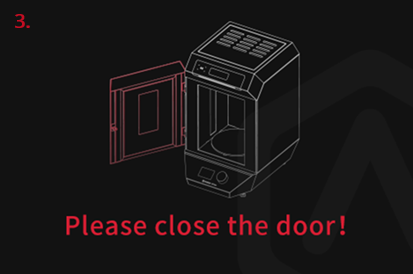

Caution: If the front door is not closed, the display screen displays Please close the door! When the front door is not closed, the DF Cure will not run any program.
Manual Setting Mode:

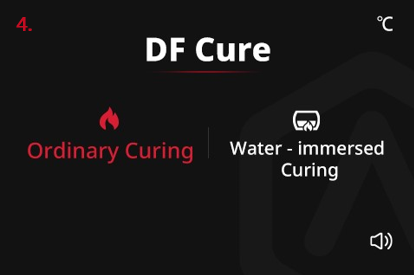

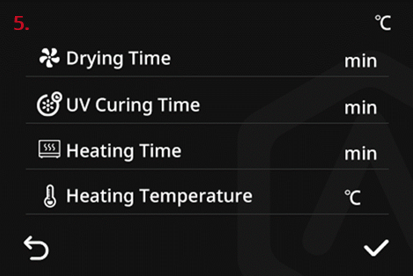

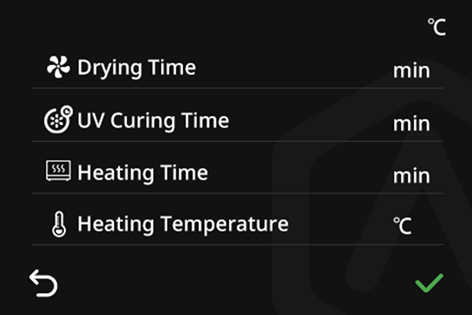

Turn the knob to select the Ordinary Curing option on the home page, and press the knob to enter the ordinary curing interface.

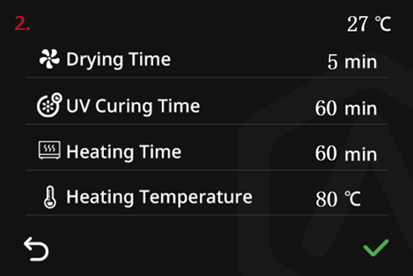

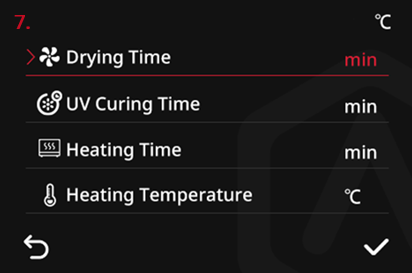

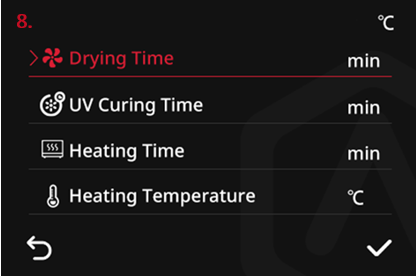

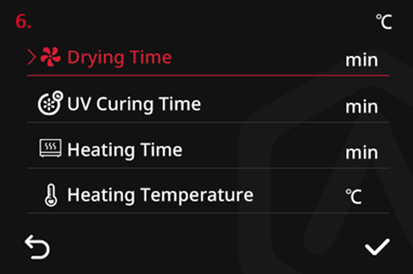

On the Ordinary Curing interface, turn the knob and select Drying Time.
Press the knob to enter the drying time option, and turn the knob to adjust the time for this parameter. The time range is 0-30 minutes.
Note: If the model is already dry, the drying time can be set to 0 minute.
After finishing adjusting, press the knob and return to the previous level. Turn the knob in the same way and adjust the parameters of UV Curing Time, Heating Time, and Heating Temperature in sequence.
The time range of UV Curing Time is 0-250 minutes.
The time range of Heating Time is 0-250 minutes.
The temperature range of Heating Temperature is 60-120°C.
After all parameter adjustments are complete, turn the knob to select ✓ and press it. The DF Cure will start to work.
According to the pre-defined programs, the DF Cure will proceed to the programs Drying and Curing (UV+Heating) in sequence.

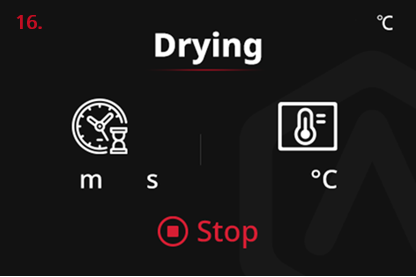

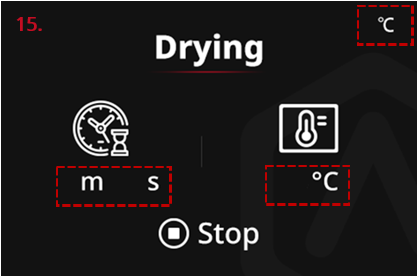

The display screen will enter the drying interface as shown in figure 10. The remaining drying time is displayed in the red box on the left, the target temperature (fixed at 50°C) is displayed in the red box on the right, and the current chamber temperature is displayed in the red box in the upper right corner.
On the drying interface, the DF Cure will heat up the chamber. When the chamber temperature reaches the target temperature (50°C), the DF Cure will start to dry the model, and the remaining drying time will begin counting down.
If you want to stop drying during the drying process, you can turn the knob to select Stop and press the knob to return to the home page.
Note: After pressing the Stop button, drying cannot be resumed. If drying is still required, the drying process can be restarted.

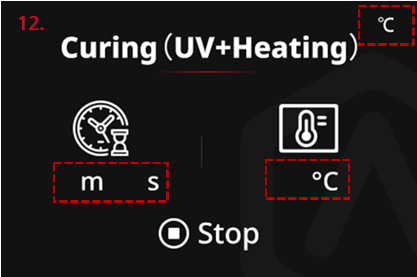

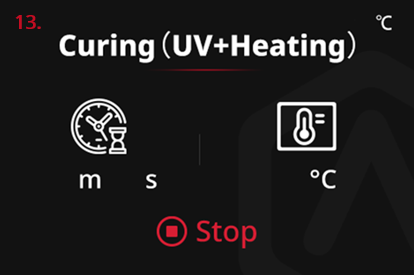

After drying, the display screen will enter the UV curing and heat curing interface. As shown in figure 12, the remaining curing time is displayed in the red box on the left (which will select the larger value between Heating Time and UV Curing Time), the target temperature is displayed in the red box on the right, and the current chamber temperature is displayed in the red box in the upper right corner.
On the UV curing and heat curing interface, waiting for the chamber temperature to reach the target temperature, the DF Cure begins to cure the model (UV curing and heat curing are carried out simultaneously), and the remaining curing time starts counting down.
If you want to stop curing during the curing process, you can turn the knob to select Stop and press the knob to return to the home page.
Note: After pressing the Stop button, curing cannot be resumed. If curing is still required, the curing process can be restarted.
If only UV curing is required, set Heating Time to 0. The DF Cure will display the UV curing interface. As shown in figure 14, the remaining curing time is displayed in the red box.
If you want to stop curing during the UV curing process, you can turn the knob to select Stop and press the knob to return to the home page.
Note: After pressing the Stop button, curing cannot be resumed. If curing is still required, the curing process can be restarted.
If only heat curing is required, set UV Curing Time to 0. The DF Cure will display the Heat Curing interface. As shown in figure 16, the remaining curing time is displayed in the red box on the left, the target temperature is displayed in the red box on the right, and the current chamber temperature is displayed in the red box in the upper right corner.

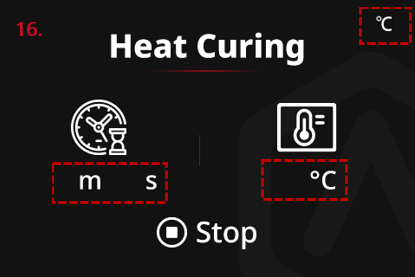

On the heat curing interface, while waiting for the chamber temperature to reach the target temperature, the DF Cure will begin to cure the model, and the remaining curing time starts counting down.
If you want to stop curing during the heat curing process, you can turn the knob to select Stop and press the knob to return to the home page.
Note: After pressing the Stop button, curing cannot be resumed. If curing is still required, the curing process can be restarted.
E.3 Water-immersed Curing
Turn the knob to select the Water-immersed Curing option on the home page, and press the knob to enter the water-immersed curing interface.

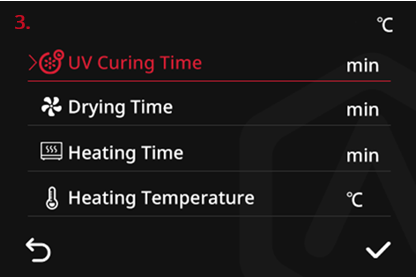

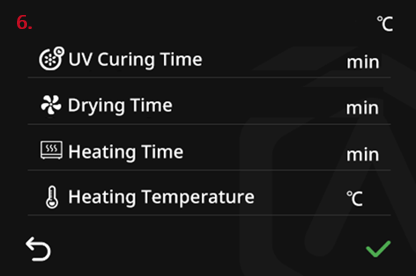

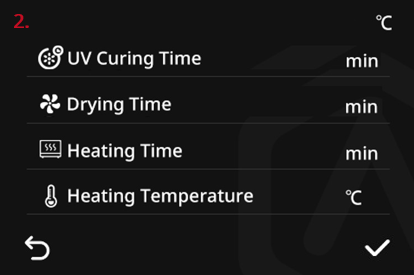

On the water-immersed curing interface, turn the knob and select UV Curing Time.

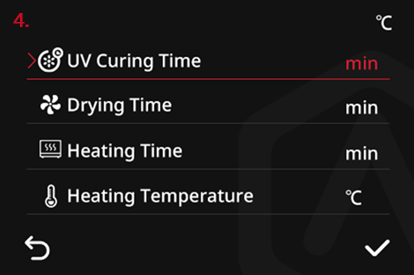

Press the knob to enter the UV curing time option, and turn the knob to adjust the time for this parameter. The time range is 0-250 minutes.
After adjusting, press the knob and return to the previous level. Turn the knob in the same way and adjust the parameters of Drying Time, Heating Time, and Heating Temperature in sequence.
The time range of Drying Time is 0-30 minutes.
The time range of Heating Time is 0-250 minutes.
The temperature range of Heating Temperature is 60-120°C.
After all parameter adjustments are complete, turn the knob to select ✓ and press it. The DF Cure starts working.
According to the pre-defined programs, the DF Cure proceeds to the programs UV Curing, Drying and Heat Curing in sequence.

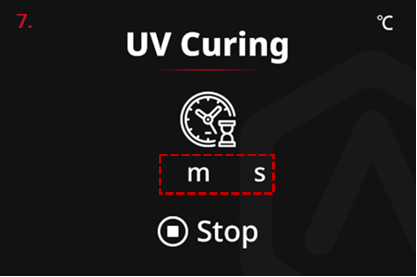

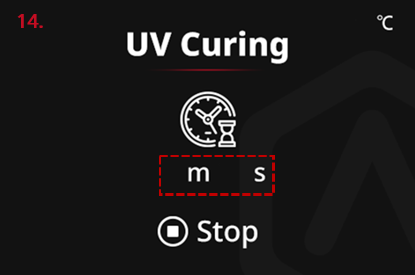

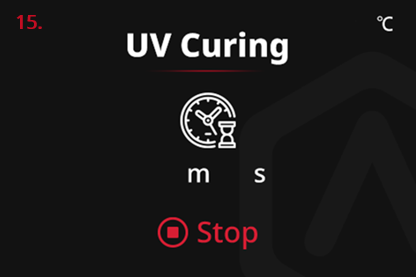

The display screen enters the UV curing interface as shown in figure 7. The remaining UV curing time is displayed in the red box.
If you want to stop curing during the UV curing process, you can turn the knob to select Stop and press the knob to return to the home page.
Note: After pressing the Stop button, curing cannot be resumed. If curing is still required, the curing process can be restarted.

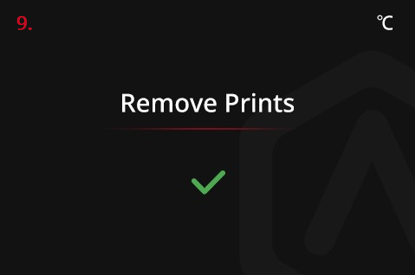

After UV curing, the display screen will display Remove Prints. Press the knob to open the front door.

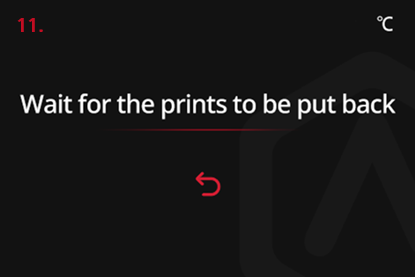

After opening the door, the display screen will display Wait for the prints to be put back.
Note: When pressing the knob on this interface, confirm to return to the home page and terminate the subsequent programs. If you need to continue curing, you can adjust the parameters again and the curing process will restart.
Take out the glass container, remove the model from the container and place it back on the tray. Close the front door.
Note: The black area in the center of the tray is the shading area. To avoid interference with the curing effect of the model, please place the model away from the black area in the center.

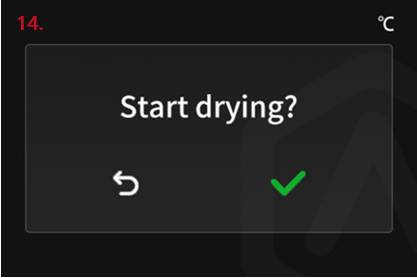

After closing the door, the display screen will display Start drying? Turn the knob to select the green ✓, and press the knob to start the drying program.
If the red return icon is selected and the knob is pressed, confirm returning to the home page and terminating the programs.

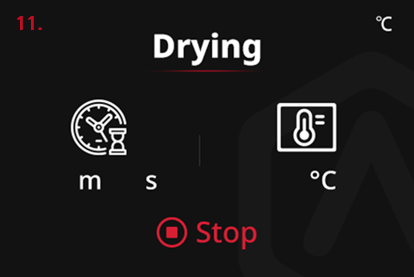

The display screen will enter the drying interface as shown in figure 15. The remaining drying time is displayed in the red box on the left, the target temperature (fixed at 50°C) is displayed in the red box on the right, and the current chamber temperature is displayed in the red box in the upper right corner.
On the drying interface, the DF Cure will heat up the chamber. When the chamber temperature reaches the target temperature (50°C), the DF Cure will start to dry the model, and the remaining drying time will begin counting down.
If you want to stop drying during the drying process, you can turn the knob to select Stop and press the knob to return to the home page.
Note: After pressing the Stop button, drying cannot be resumed. If drying is still required, the drying process can be restarted.

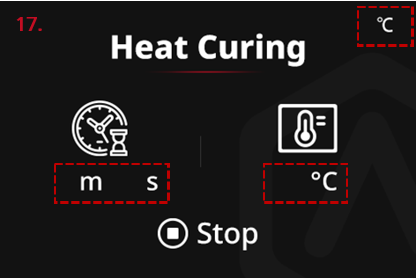

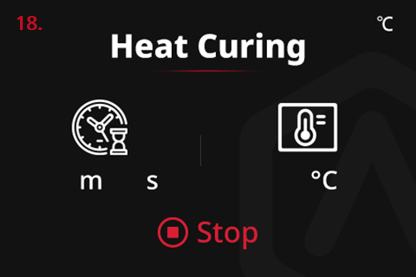

After drying, the display screen will enter the heat curing interface. As shown in figure 17, the remaining curing time is displayed in the red box on the left, the target temperature is displayed in the red box on the right, and the current chamber temperature is displayed in the red box in the upper right corner.
On the heat curing interface, waiting for the chamber temperature to reach the target temperature, the DF Cure begins to cure the model, and the remaining curing time starts counting down.
If you want to stop curing during the heat curing process, you can turn the knob to select Stop and press the knob to return to the home page.
Note: After pressing the Stop button, curing cannot be resumed. If curing is still required, the curing process can be restarted.
E.4 Take out the Model after Curing

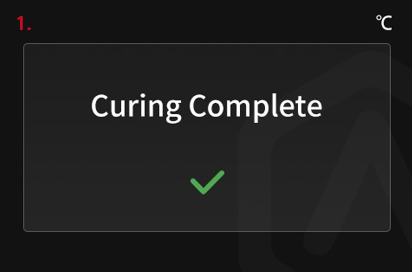

After all the programs for ordinary curing or water-immersed curing are complete, the display screen will display Curing Complete, and the DF Cure will emit a prompt sound and will stop working. Press the knob, and the display screen will return to the home page.
Wait until the chamber temperature drops below 60 ºC (the current chamber temperature is displayed in the upper right-hand corner of the display screen), and then tap the touch button on top to open the front door.

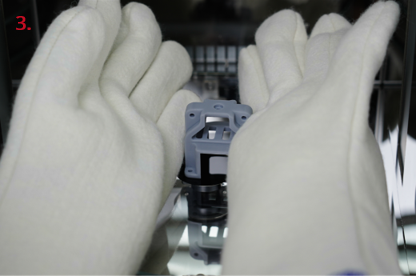

Remove the model while wearing heat resistant gloves, and set it aside to cool.

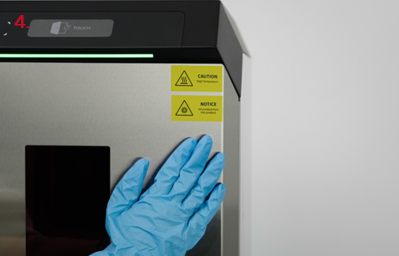

Caution: When the chamber temperature is 60 ºC or above and tapping the button on top, the display screen will prompt High temperature warning! The door cannot be opened immediately.
At this time, press the knob to cancel the door opening and return to the home page; long press the knob to open the door. It is not recommended to open the door when the chamber temperature is still above 60ºC.

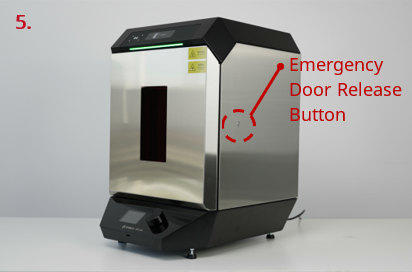

If the DF Cure’s door remains locked shut due to power outage, wait for about half an hour (the chamber temperature drops from 80ºC to 60ºC). Then press the emergency door release button on the side of the DF Cure (as shown in the red circle in figure 5) to open the front door.
Note: If the chamber temperature is above 80 ºC, it is necessary to wait for more than half an hour before pressing the emergency door release button to open the door.
F.1 Clean the Tray and Chamber
It is recommended to clean the tray and chamber in a timely manner after each curing to prevent residual water stains or debris sticking to the tray or chamberafter not being used for a long time, which can affect curing quality.
Note: Before cleaning the tray and chamber, please ensure that they have cooled down to avoid being burned.
1. Maintenance Frequency: after each curing or once a week.
2. Operating Steps:
a) The DF Cure is in standby mode.

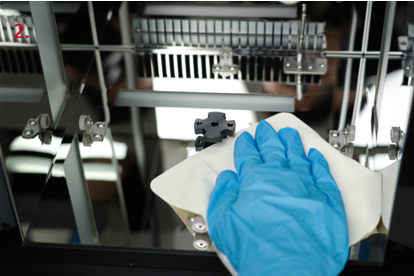

b) Wet the lint-free cloth with clean water and clean the surface of the tray with the lint-free cloth.
c) Remove the tray and clean the reverse side.
d) Place the tray in a cool place to dry.

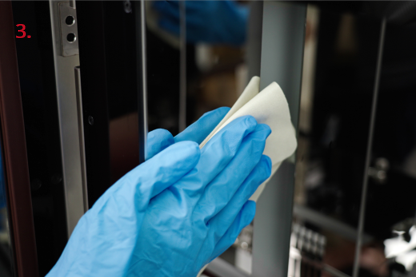

e) Clean the chamber with the wet lint-free cloth.
f) After the tray is dry, install it back in place.
F.2 Clean the Air Outlet

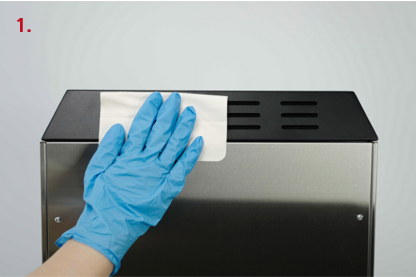

It is recommended to regularly clean the air outlet to prevent dust from accumulating in the air outlet after prolonged use, which can affect the heat dissipation of the DF Cure.
1. Maintenance Frequency: once a month.
2. Operating Steps:
a) The DF Cure is in standby mode.
b) Wet the lint-free cloth with clean water and stick away the dust from the air outlet with the lint-free cloth.
