1. Standard Mode and Hyper Speed Mode
In the ideaMaker 4.4.0 Alpha version, if the Hyper Speed Mode is not enabled, the Standard Mode will be used. When Hyper Speed Mode is toggled on, the software enables the Hyper Speed functionality.
2. In Standard Mode and Hyper Speed Mode, threshold values for each speed of different filaments
In ideaMaker 4.4.0 Alpha version, Raise3D filaments have threshold limits for speed, acceleration, and volumetric flow rate in Standard Mode and Hyper Speed Modes respectively, and each speed exceeding the threshold, ideaMaker will display an alert.

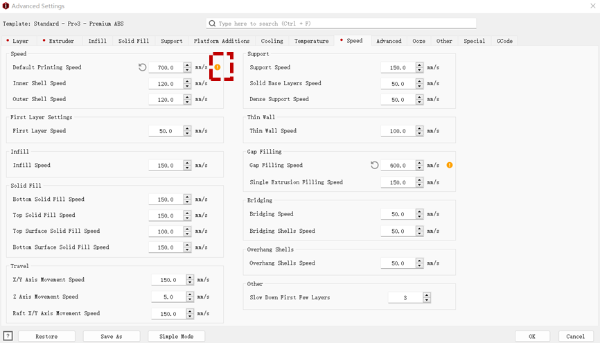

In Standard Mode/Hyper Speed Mode, click "Edit" to enter the advanced settings of the template. Yellow exclamation mark alerts when velocity, acceleration, volumetric flow rate exceeds the threshold, and the explanation will be given on mouse hover.

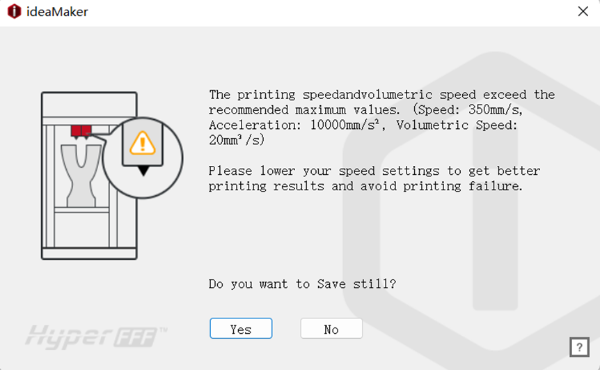

In Standard Mode/Hyper Speed Mode, click “Ok” after adjusting the parameters in the template or click “Slice”, a warning window will pop-up when velocity, acceleration, and volumetric flow rate exceed the threshold.
The thresholds for velocity, acceleration, and volumetric flow rate are different for Raise3D filaments in Standard Mode and Hyper Speed Mode, as shown in the table below.
Standard Mode | Hyper Speed Mode | |||||
Volumetric Speed | Speed | Acceleration | Volumetric Speed | Speed | Acceleration | |
Raise3D Premium Filament | <=10mm3/s | <=100mm/s | <=1500mm/s2 | <=20mm3/s | <=350mm/s | <=10000mm/s2 |
Raise3D Hyper Speed Filament | <=10mm3/s | <=100mm/s | <=1500mm/s2 | <=30mm3/s | <=350mm/s | <=10000mm/s2 |

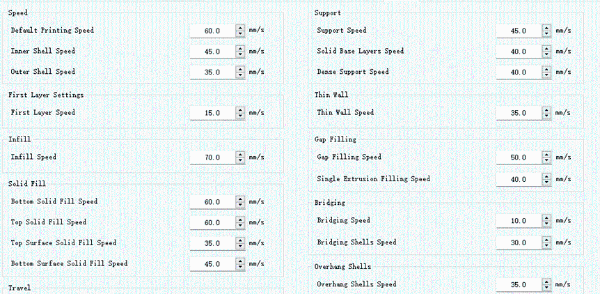

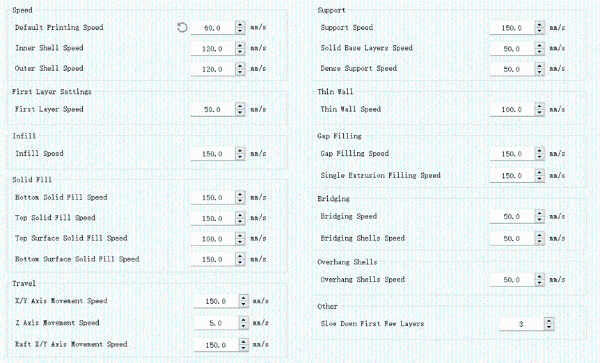

Speed judgment includes all of the following fields:

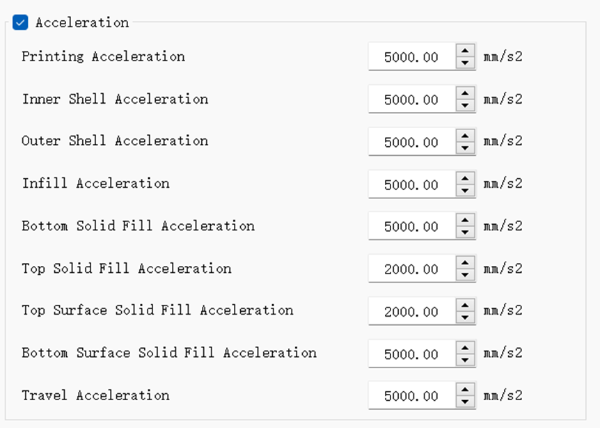

The acceleration judgment includes all of the following fields:
The volumetric flow rate judgment includes all of the following fields:
Volumetric flow rate calculation formula: Volumetric Speed = Layer Height * Extrusion Width * Speed
The volumetric flow rate is determined by the Layer Height, Extrusion Width, and Speed.
3. In Hyper Speed Mode, rules for judging the L1/L2 tag on the template.
In ideaMaker 4.4.0 Alpha version, for the Hyper Speed Mode, the templates are differentiated by tags according to the values of velocity, acceleration, and volumetric flow rate of the template.

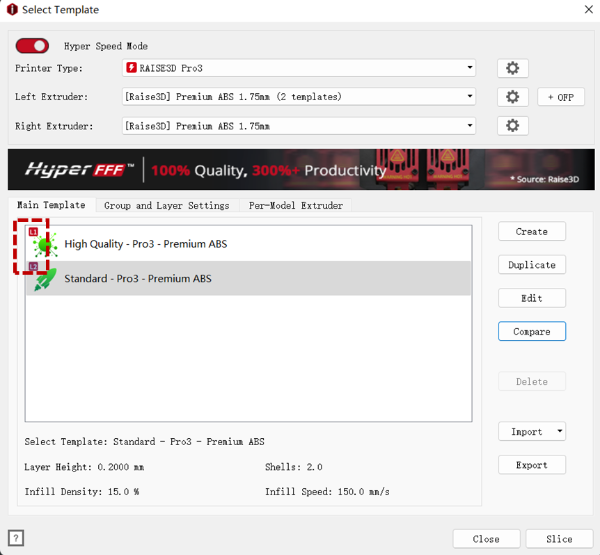

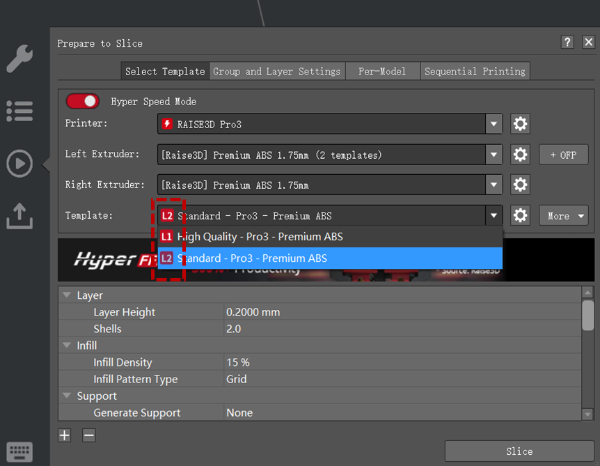

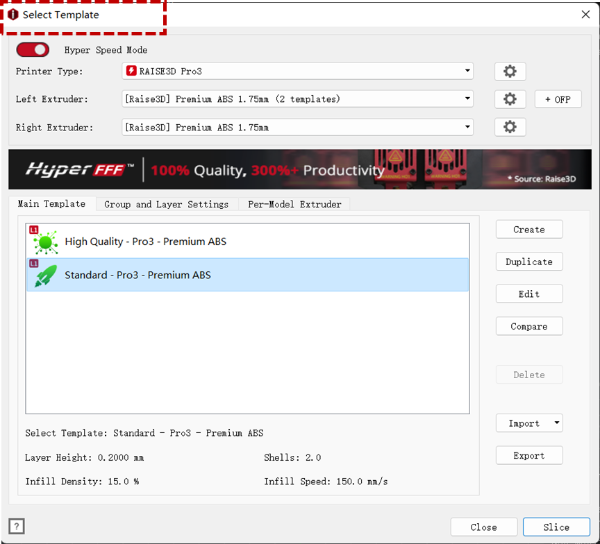

The ideaMaker software will judge all parameters in the templates that affects the velocity, acceleration, and volumetric flow rate of the template. When one of the parameter values reaches L1 or L2, the template will be saved, and a small tag of L1 or L2 will be added to this template as a distinction (in Standard Mode, no labels will be displayed) .
Label Display | Speed Range |
Standard Mode (No tag displayed) | Speed < = 100mm/s Acceleration < =1500mm/s2 Volumetric flow rate < =10mm3 /s |
Displaying L1 tags | 100mm/s< speed< =150mm/s 1500mm/s2 < Acceleration < =5000mm/s2 10mm3 /s< volumetric flow rate< =15mm3 /s |
Displaying L2 tags | 150mm/s< speed< =350mm/s 5000mm/s2 < Acceleration < =10, 000mm/s2 15mm3 /s< volumetric flow rate< =30mm3 /s |
-END-
