[ Manual Pro2 Series - How to Replace the Right Y Belt – V1.0 ]
1. Loosen the retaining screws in pulleys until they can move freely.
2. Loosen the screws which hold the belt block until you can split it from sliding block.

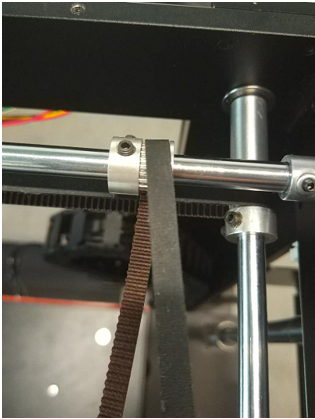

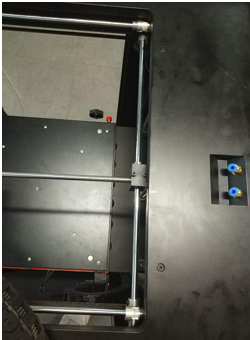

3. Remove the belt from printer.
4. Put the new belt on the rod. Wrap the belt around the pulleys on both sides.
5. Hold both ends of belt and push it into the belt block.
Note: The belt should be placed exactly at the middle gap of belt block.

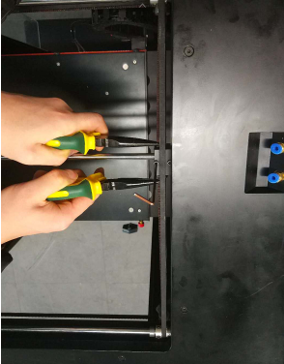

6. Using two pliers to clamp both ends of belt. Push the pulley to the ends of rod.
7. Push the pliers firmly to the middle pulley with enough force.
Note: The belt should be centered at the middle gap of belt block.
8. Install the screws that hold the belt block (with the help from the second person).
9. Clamp the belt and check whether the belt tension matches that of the other side.
10. If the tension is uneven, choose the looser one, and repeat steps 1 to 9.
[ Manual Pro2 Series - How to Replace the Right Y Belt – V1.0 ]
-END-
