4.2.10. Boolean

Download PDF

: Add Boolean operations for 3D models, include model merging, subtracting and intersecting operations.

Note:This function works for two models only.


Figure 1: The Boolean Option.


Union refers to the merging of selected models.


Figure 2: Enabled "Union".

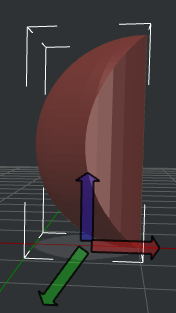

 Figure 3: Disabled "Union".




Figure 4: Enabled "Union".


 Figure 5: Disabled "Union".


Subtract (A-B) will remove the last selected model from the first selected model.

Figure 6: Enabled "Subtract (A-B)".


Figure 7: Disabled "Subtract (A-B) ".


Subtract (B-A) will remove the first selected model from the last selected model.

Figure 8: Enabled "Subtract (B-A)".


 Figure 9: Disabled "Subtract (B-A)".


Intersect will keep the overlapped region between the selected models.

Figure 10: Enabled "Intersect".


Figure 11: Disabled "Intersect".
