5.1.3.8. Temperature

(1) Temperature

Heated Bed Temperature refers temperature of heated bed when printing.

Primary Extruder refers to the temperature of the primary extruder when printing. We default set the left extruder as the primary extruder when you select Extruder Count as 1 in Printer Settings.

Left Extruder refers to the manual control temperature of the left extruder.

Right Extruder refers to the manual control temperature of the right extrude.

The Left Extruder and Right Extruder settings can only be seen after selecting Extruder Count as 2 in Printer Settings.


Use Temperature Control List refers that you can set different temperature values for specific layers with this option enabled.

Changing the temperature by clicking the Add Temperature button and input the temperature in right box. And delete it by selecting the value in right box and clicking the Remove Temperature button.


(2) Cool Down Inactive Extruder

Cool Down Inactive Extruder refers to with this function enabled, the inactive extruder will be cooled down during printing.

Move to Park Position with this function enabled, inactive extruder will move to specific position to heating up the extruder.

Note: Please disable this function if you use the Raise3D E2 printer, which has the Independent Dual Extrusion feature and nozzles will go back to the home position automatically when switching extruders.


Park Position X refers that the park position in X direction is for heating up the inactive extruder before inactive extruder switched to active.

Park Position Y refers that the park position in Y direction is for heating up the inactive extruder before inactive extruder switched to active.

Inactive Cooling Temperature (Left) refers to cooling down the inactive left extruder to the target temperature.

Inactive Cooling Temperature (Right) refers to cooling down the inactive right extruder to the target temperature.

Heat up Inactive Extruder in Advance refers to the inactive extruder will be heated up before moving to park position.

Heat up Ahead of Time refers to the inactive extruder will start to heat up in seconds ahead of time before moving to park position.

Inactive Heating Temperature (Left) refers to the inactive left extruder will be heated up to the target temperature before moving to park position.

Inactive Heating Temperature (Right) refers to the inactive right extruder will be heated up to the target temperature before moving to park position.

Cool Down before Extruder Switch refers to cooling down the active extruder before switching extruders.

Note: For E2 printers, this function can be enabled. For Pro2 series printers, this function must be disabled to protect the switching system.

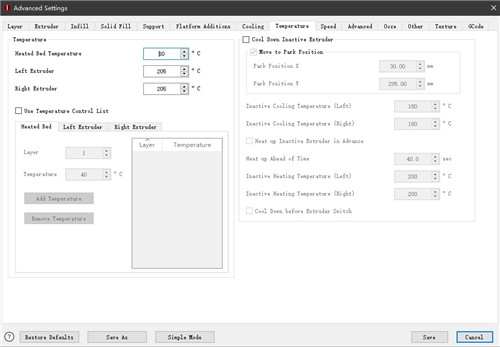

Figure 1: Temperature Tab.
