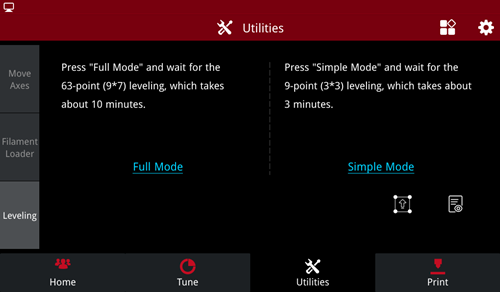

Click “Levelling” to enter the levelling page, you can choose the Full Mode -63 points (9*7) levelling as needed, or the Simple Mode -9 points (3*3) levelling.
Leveling
Select “Simply Mode”, the printer will automatically carry out 9-point levelling.
Simple Mode

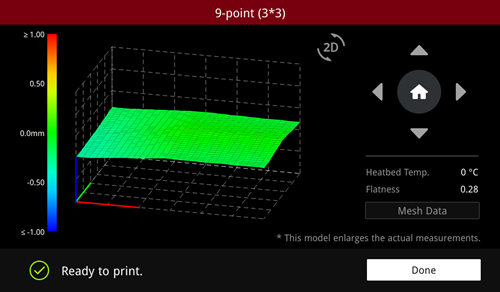

Click to see the levelling results.
Leveling Results (3D)
indicates that the flatness of the heat bed is in the normal range and the printer can print directly.
indicates that the flatness of the hot bed exceeded the normal range, which is needed to be manually leveled first. (you can perform manual levelling according to the file How to Level the Bed.pdf )

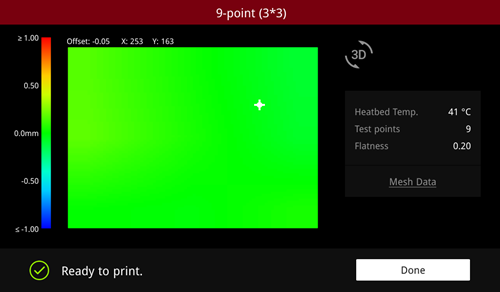

Click on the “2D” icon to switch to flat view to view levelling results.
Click on the green area coordinates below to show the height difference at the coordinates.
Leveling Results (2D)

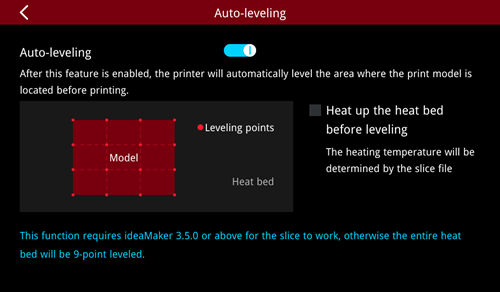

Click to access the Auto levelling page.
Auto levelling
With the leveling optimization function on, the printer will automatically level the area of the model before each print.
-END-
